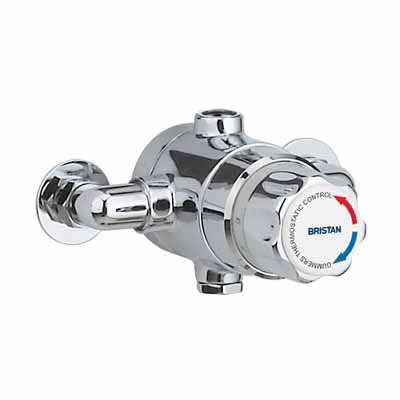

Bristan Gummers 15mm Thermostatic Exposed Mixing Valve TS1503ECP 2000 MK

Gummers 15mm Thermostatic Exposed Mixing Valve from Bristan

15mm Thermostatic Exposed Mixing Valve (no shut-off) - Ideal for either single point or limited group applications. Single adjustable temperature control for user comfort. Automatic shut-off in the event of hot or cold water supply failure. Check valves and serviceable filters as standard. Operates at a maximum pressure differential of 10:1.

Product Specifications

• Chrome finish
• Brass construction
• No of Controls: 1
• Shower Type: thermostatic exposed shower
• Maximum Hot Water Supply Temperature 80°C
• Plumbing System Suitability: all, preferably balanced
• Working Pressure Range: 0.2 - 5.0bar
• Connection Inlet: 15mm compression elbows
• Connection Outlet: 1/2" BSP
• Isolation Valve Included: No
• Check Valve Included: Yes
• WRAS approved

Additional Information

• Ideal for either single point or limited group applications
• Single adjustable temperature control for user comfort
• Automatic shut-off in the event of hot or cold water supply failure
• Operates at a maximum pressure differential of 10:1
• Requires separate flow control

• Bristan Gummers 15mm Thermostatic Exposed Mixing Valve TS1503ECP 2000 MK Datasheet (PDF)

• Bristan Gummers 15mm Thermostatic Exposed Mixing Valve TS1503ECP 2000 MK Fitting Instructions (PDF)

Gummers 15mm Thermostatic Exposed Mixing Valve TS1503ECP 2000 MK - As a result of careful construction Bristan delivers an excellent product that blends reliable build with an eye-catching appearance. By choosing HomeSupply you can buy the Bristan Gummers 15mm Thermostatic Exposed Mixing Valve TS1503ECP 2000 MK at a great price and benefit from our outstanding customer service.
