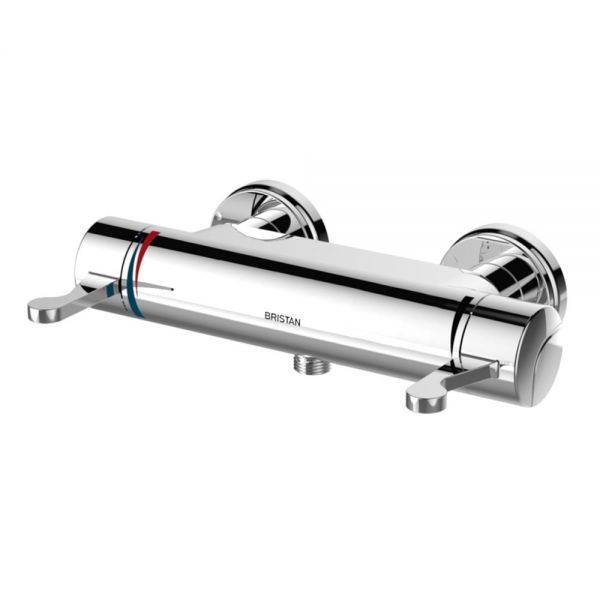

Bristan OPAC thermostatic exposed bar shower valve with Chrome Levers and Fast Fit connections OP SHXVO ISOL EL C

OPAC thermostatic exposed bar shower valve with Chrome Levers and Fast Fit connections from Bristan

Opac SHXVO EL Valve Only Chrome - Cool Touch Shower valve body for ultimate user safety. Easy installation with self-isolating wallmount 12 fixing kit. Integral flushing mechanism for easy maintenance. Suitable for all systems, ideally balanced.

Product Specifications

• Chrome finish
• Commercial
• Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) and BS EN 1287:1999 (LP)
• Valve Type: Thermostatic Cartridge
• Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression fast fit connections
• Outlet Connections: 1/2" BSP
• Working Pressures: Min 0.2bar, Max 5.0bar, Maximum Static Pressure: 10.0 bar

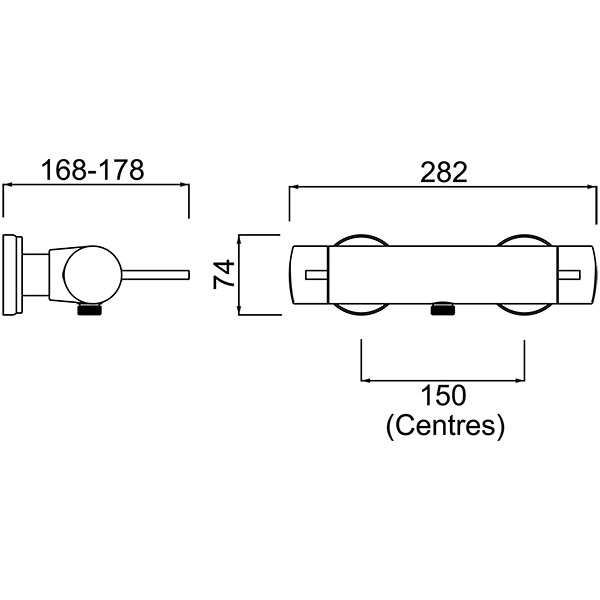

• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Cool touch shower valve body for ultimate user safety.
• Easy installation with first/second fix fixing kit.
• Integral isolator & flushing mechanism for easy maintenance.
• High performance at low pressures.
• TMV2 & TMV3 approved.
• Complies with D08 specification.

• Bristan OPAC thermostatic exposed bar shower valve with Chrome Levers and Fast Fit connections OP SHXVO ISOL EL C Datasheet (PDF)

• Bristan OPAC thermostatic exposed bar shower valve with Chrome Levers and Fast Fit connections OP SHXVO ISOL EL C Fitting Instructions (PDF)

OPAC thermostatic exposed bar shower valve with Levers and Fast Fit connections OP SHXVO ISOL EL C - Thanks to painstaking design Bristan delivers a quality product that couples consistent build with an attractive finish. By choosing HomeSupply you can own this Bristan OPAC thermostatic exposed bar shower valve with Chrome Levers and Fast Fit connections OP SHXVO ISOL EL C for less than you might expect.
