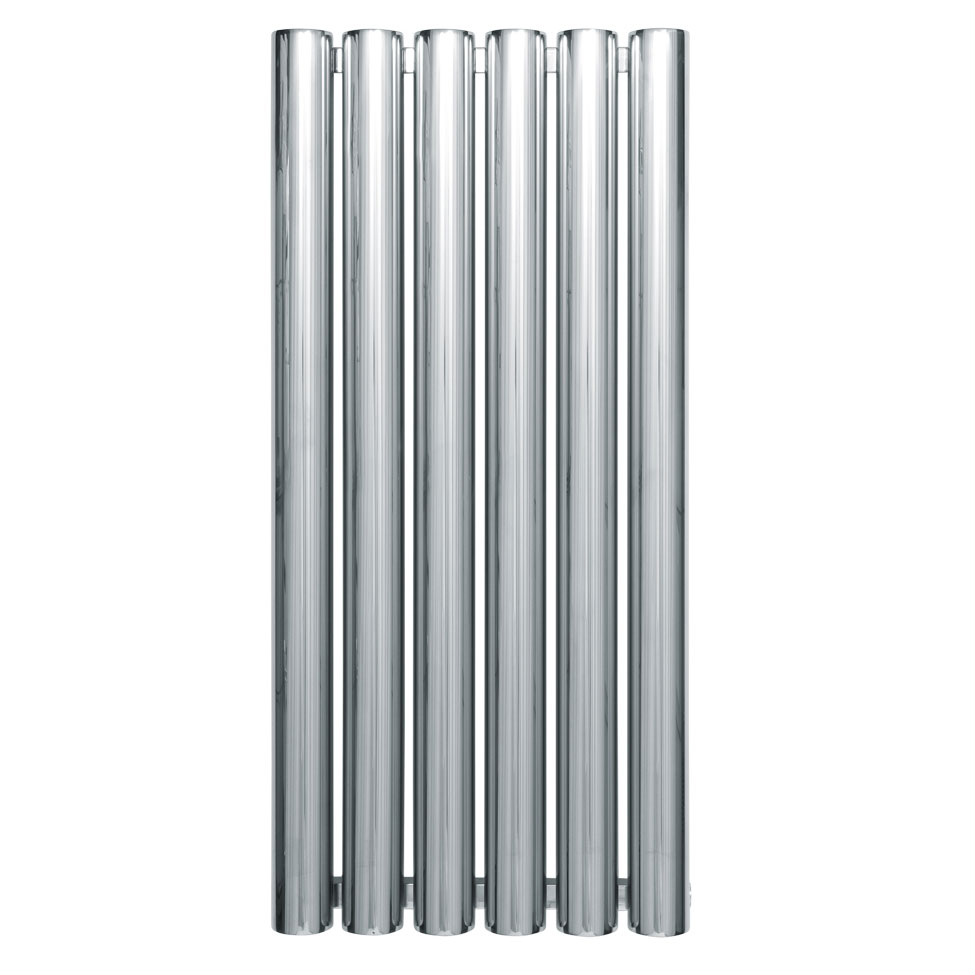

JIS Sussex Mayfield 1010mm x 470mm Designer Stainless Steel Radiator

Mayfield 1010 x 470 Stainless Steel Designer Radiator by JIS

Mayfield Radiator Features

• Manufactured from 304 grade stainless steel with 316 grade stainless welds
• Available in a polished or satin finish
• Wall brackets included
• Optional valves available - This option will show once the finish is selected
• 25 year guarantee
• Part of the Sussex Range by JIS

Please Note: When mounted vertically this radiator has side tappings so the pipe centres are dependent on the type of valves. When horizontal the pipe centres are 950mm.

Mayfield Radiator Dimensions & Outputs

• Height: 1010mm
• Width: 470mm
• BTU: 2966
• Watts: 869
• Horizontal Pipe Centres: 950mm
• When mounted vertically it has side tappings so the pipe centres are dependent on the type of valves
• Pipe Centres from Wall: 55-75mm
• Overall Projection: 140-160mm

Optional Valves:

Straight, Angled & Corner Valves:

Solar straight manual valves. For use with pipes coming up from the floorboards.

Solar angled manual valves. For use with pipes coming out of the walls.

Straight TRV thermostatically controlled valves. For use with pipes coming up from the floorboards.

Angled TRV thermostatically controlled valves. For use with pipes coming out of the walls.

Profile corner manual valves. For use with pipes coming out of the walls.

Streamline corner TRV thermostatically controlled valves. For use with pipes coming out of the walls.

JIS Sussex Mayfield 1010mm x 470mm Designer Stainless Steel Radiator - With exact design JIS Radiators delivers an excellent item which fuses reliable build with an eye-catching finish. By choosing HomeSupply you can buy the JIS Sussex Mayfield 1010mm x 470mm Designer Stainless Steel Radiator at a great price.
